Scantech TrackScan Sharp 3D Scanner
Extensive Tracking, Accurate Measuring
TrackScan-Sharp is Scantech's newest 3D measurement system consisting of a portable i-Scanner and an optical i-Tracker. It offers a tracking distance of 6 meters, a volumetric range of 49 m3, and a volumetric accuracy of 0.049 mm. With the i-Tracker's onboard processor, 25-megapixel cameras, and advanced technology, TrackScan-Sharp is perfect for measuring large parts without the need to move trackers frequently. It supports wired and wireless data transfer, making scanning easier, and can be paired with an auxiliary light module for inspecting holes and slots. TrackScan-Sharp improves product development and quality control.
Features & Benefits
Optical 3D Measurement System
-
![]()
Ultra-high Pixels for Intricate Details

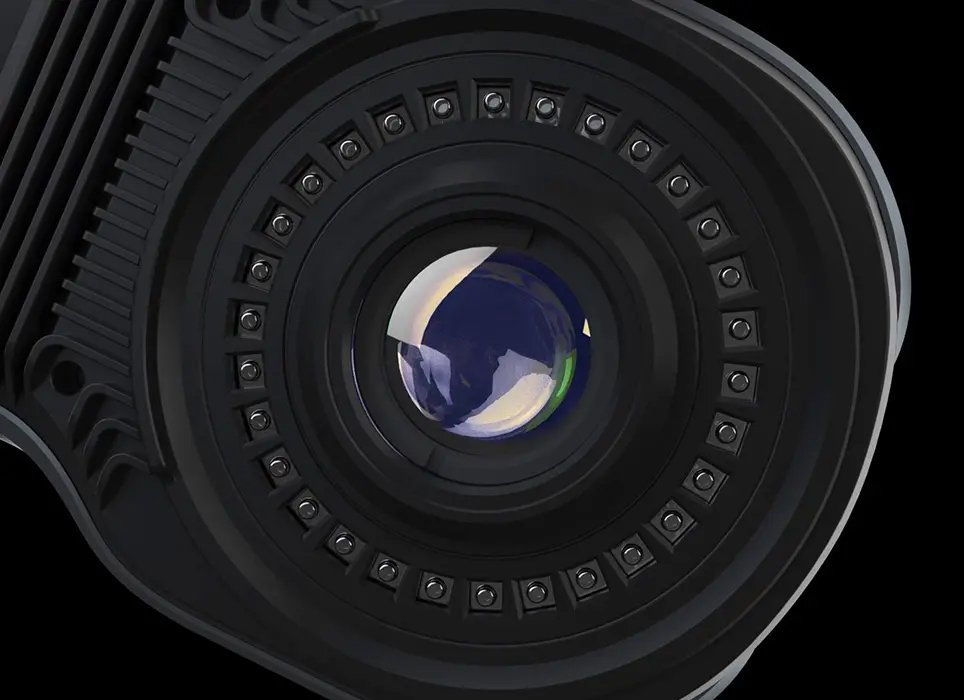

The TrackScan-Sharp 3D scanning system has a new 25 megapixel industrial camera. It has a long-range depth of field and can capture clear images up to 6 meters away.
-
![]()
Large-volume Measurement
TrackScan-Sharp simplifies large-scale part scanning with wide volume and a robust measurement algorithm. Users avoid frequent tracker movement, ensuring efficient and precise measurements.
-
![]()
Edge Computing & Impressive Performance

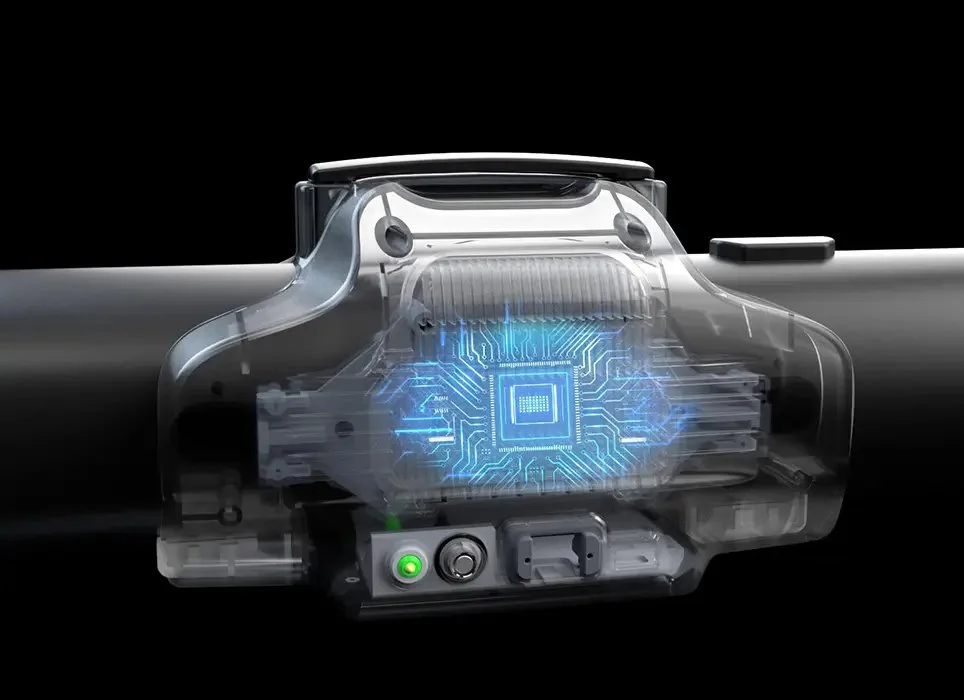

The newly designed i-Tracker has an onboard processor for efficient image processing and data computation, which can deliver coordinates in real-time. This innovative Edge Computing saves the computer’s computing power so that it’s more capable of processing the scanned data. It optimizes the data and makes it more reliable and stable, impressing users with outstanding performance.
-
![]()
Remarkable Accuracy
TrackScan-Sharp: Powerful hardware/software delivers metrology-level 3D measurement. Optimal for high-precision demands, its large tracking volume increased by 200%, enabling precise measurement of large parts.
-
![]()
Fast 3D Scanning & New Data Transmission

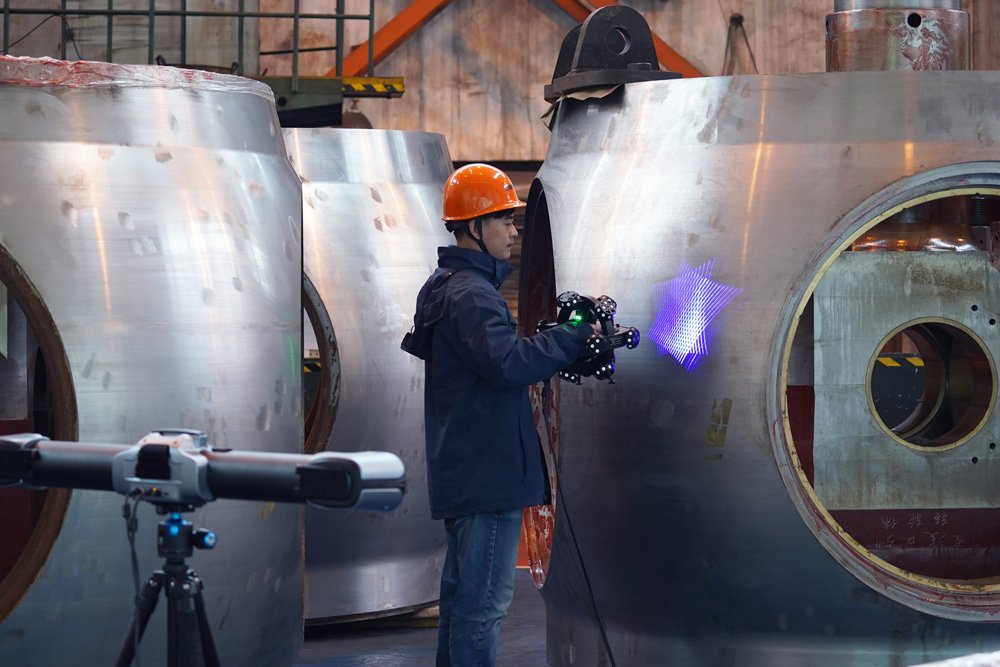

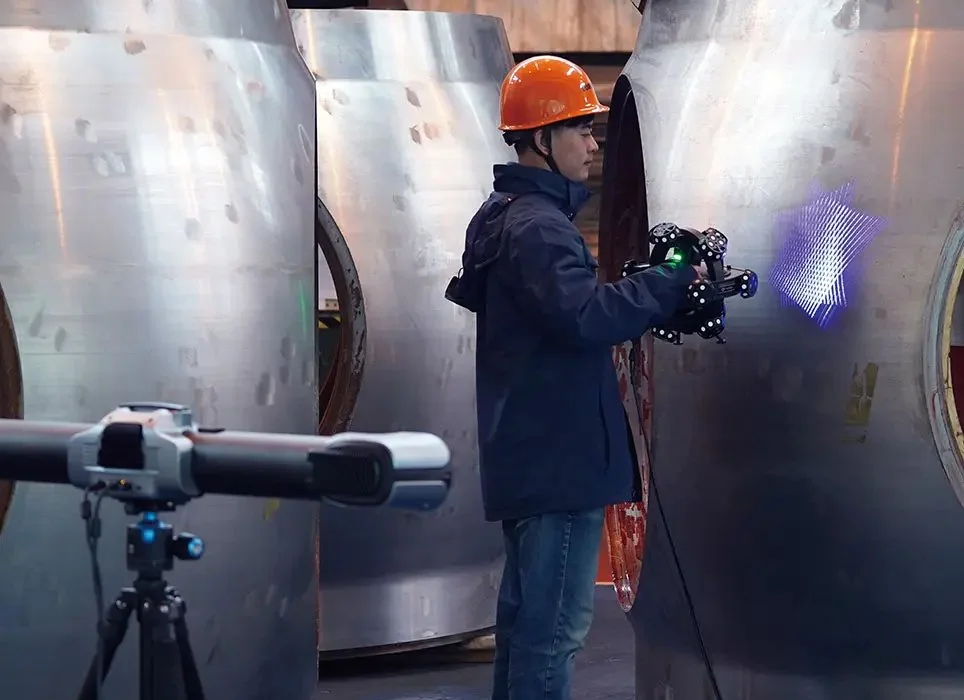

TrackScan-Sharp uses optical tracking to measure parts without reference targets. With a large tracking volume, it improves efficiency by measuring multiple parts simultaneously. It can transfer data wirelessly or with wires, meeting industrial standards. The system's plug-and-play operation enables quick setup and flexibility in different conditions for efficient measurements.
-
![]()
Innovative Design
The i-Scanner is a durable, carbon fiber sphere-shaped 3D scanner with an ergonomic handle for extended use. Its fatigue-reducing design allows for free measurement. The i-Tracker has a real-time light band for intuitive operation. Its hollow grille design maintains stable camera temperature during scanning.
-
![]()
Vast Applications

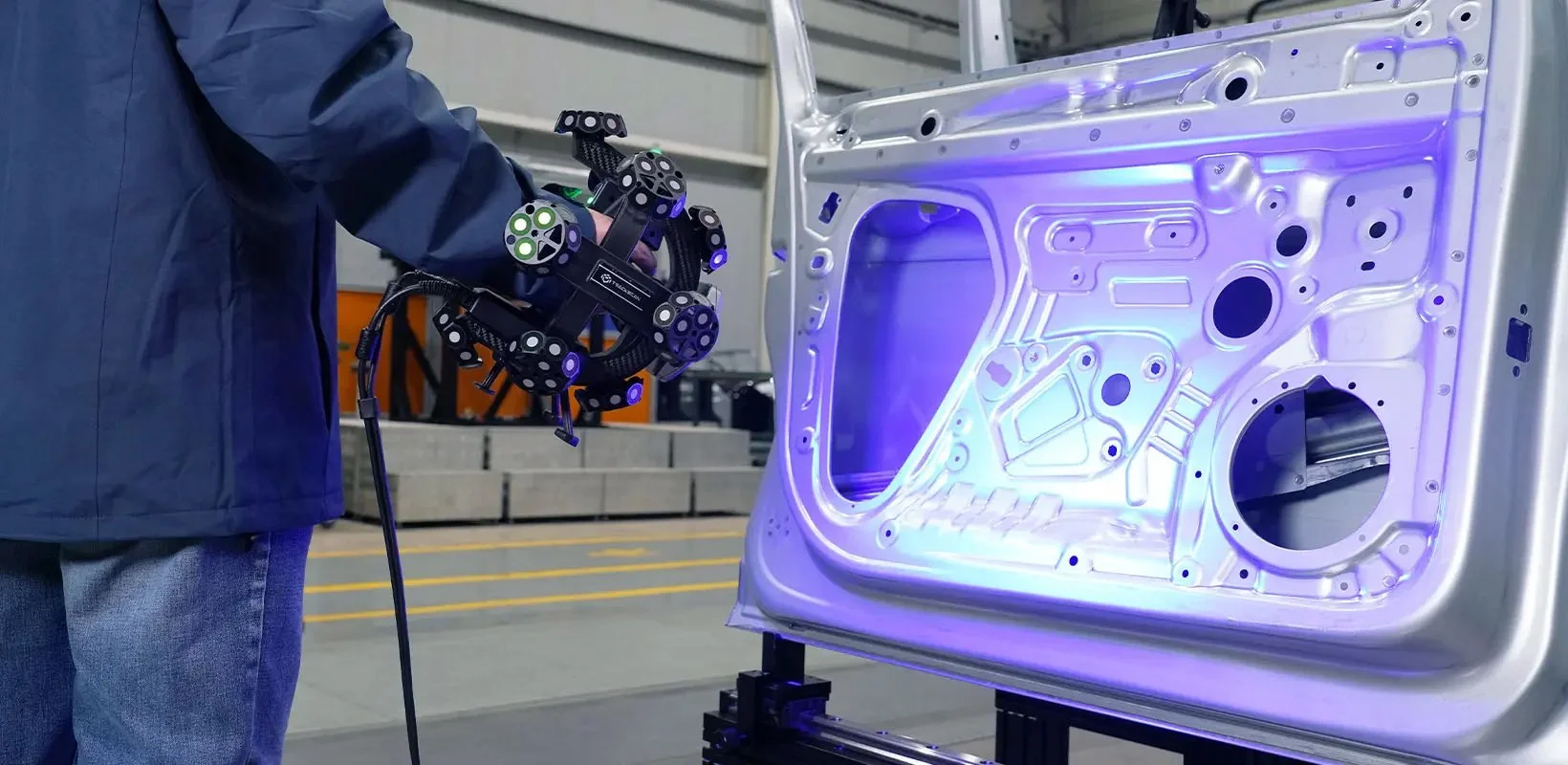

It boasts shadow-less-light edge detection with high-precision gray value measurement. Users can inspect closed features precisely, especially threaded holes. Good measurements are ensured by delivering accurate and repeatable measurement results such as positions and diameters.
Technical Specifications
| Description | Spec |
|---|---|
| Ultra-fast scanning | 21 blue laser crosses |
| Hyperfine scanning | 7 blue parallel laser lines |
| Deep-hole scanning | 1 blue laser line |
| Accuracy(1) | Up to 0.025 mm |
| Measurement rate up to | 2,600,000 measurements/s |
| Scanning area up to | 500 mm × 600 mm |
| Laser class | ClassⅡ (eye-safe) |
| Resolution up to | 0.020 mm |
| Volumetric accuracy(2) 10.4 m³ (Tracking distance 3.5 m) | 0.049 mm |
| Volumetric accuracy(2) 28.6 m³ (Tracking distance 5.0 m) | 0.067 mm |
| Volumetric accuracy(2)49.0 m³ (Tracking distance 6.0 m) | 0.089 mm |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm + 0.012 mm/m (>6m) |
| Hole position accuracy | 0.050 mm |
| Camera pixels of E-Track | 25 megapixels |
| Stand-off distance | 300 mm |
| Depth of field | 400 mm |
| Operating temperature range | 0-45 °C |
| Operating humidity range (non-condensing) | 10-90% RH |
| Interface mode | USB 3.0, Network Interface |
| Certification | CE, RoHS, WEEE |
(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
