Fixing Leaking Flanges Without Shutdowns! How Tongue Clamps Work
Flange leaks are a persistent issue across industries that deal with pressurized systems — from petrochemical plants to power generation and process facilities. When a flange begins to leak, the instinctive response is often to shut the system down for maintenance. However, in many cases, taking a system offline is costly and impractical. That’s where online repairs come in.
One of the most reliable tools for this kind of repair is the tongue clamp, also known as a blade clamp. Let’s take a closer look at what these clamps are, how they work, and why they remain a trusted method for controlling flange leaks under live conditions.
What Is a Tongue Clamp?
The term comes from their tongue-and-groove design, where the “tongue” portion of the clamp fits snugly into the gap between two flange faces.
The purpose of the tongue clamp is simple: to close or minimize the flange gap, preventing further leakage and providing a cavity into which sealant can be injected to restore sealing integrity — all without depressurizing or shutting down the system.
How Tongue Clamps Work

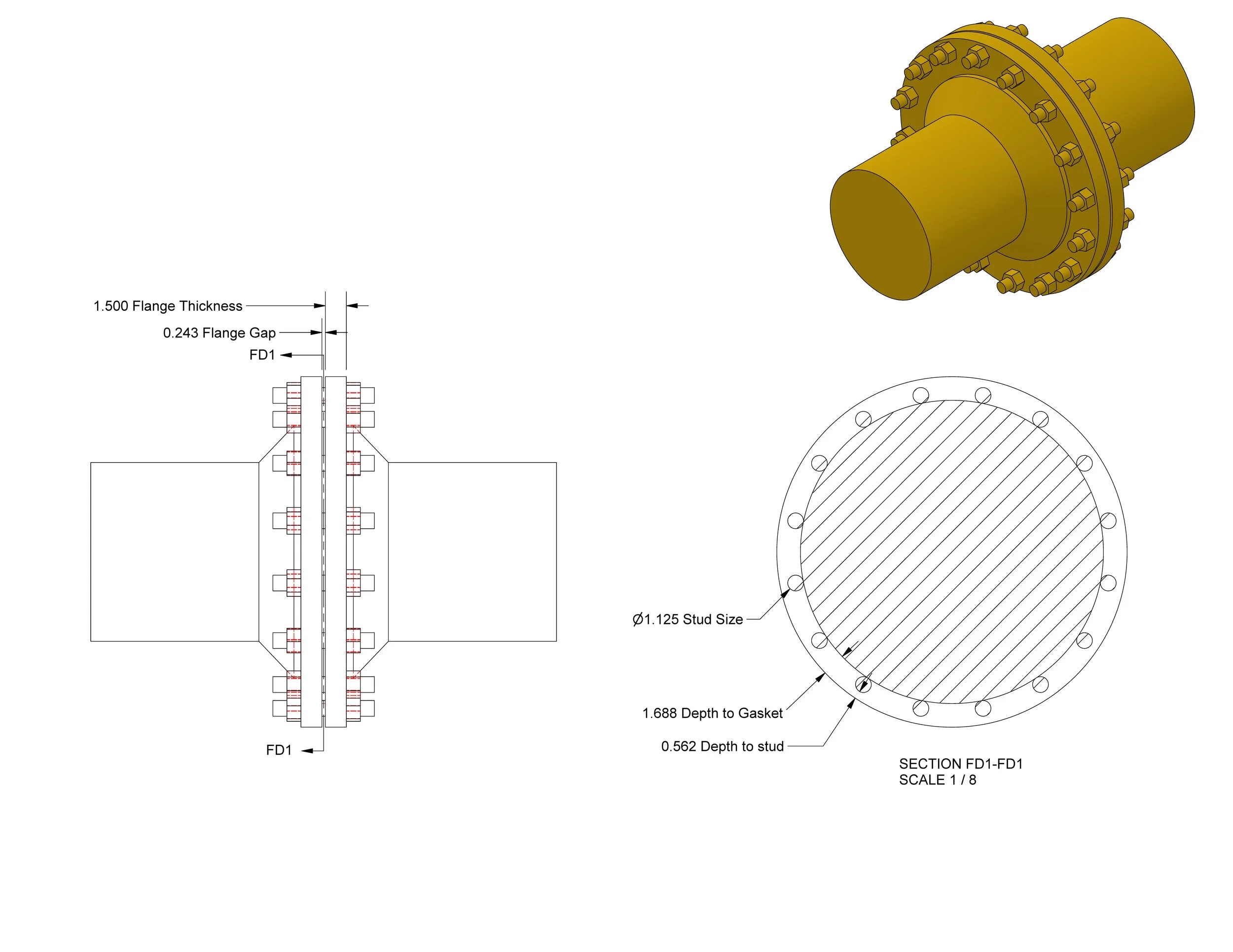

The process begins with measuring key parameters of the leaking flange:
Flange gap – the distance between the two flange faces.
Depth to gasket – how deep the gasket sits within the flange.
Depth to studs – how far the clamp must reach without interference.
Using these dimensions, a clamp is selected or fabricated to fit the specific flange geometry. Here’s how the repair typically unfolds:
Positioning the Clamp
The clamp’s “tongue” is inserted directly into the flange gap. The clamp body is then tightened using its studs to secure it in place.Peening (Air Hammering) the Clamp
One side of the flange is peened using a peening chisel (or air hammer) against the clamp. This impact pushes the opposite side of the clamp tightly against the flange, effectively closing the gap.
In most cases, only one side needs to be peened because the force naturally transfers across the clamp.Sealant Injection
Once the clamp is seated and peened properly, sealant is injected into the tongue cavity. This sealant fills voids in the flange gap, stud holes, and gasket area — creating a robust and pressure-resistant seal.
The result is a tight, sealed joint that eliminates the leak without taking the system offline.
Types of Tongue Clamps
Tongue clamps come in several configurations to suit different access and space constraints:
1. Standard Symmetrical Clamp
This is the most common design. It’s balanced on both sides and ideal for flanges with equal clearance.
Best for: General flange repairs where there are no obstructions.
Key feature: Symmetrical pressure application for even sealing.
2. Flat One-Side Clamp
This version has a flat profile on one side to accommodate obstructions such as valve bonnets or nearby structures.
Best for: Tight spaces or offset components.
Key feature: One side fits flush, while the other maintains the tongue seal.
3. Crunch Tongue Clamp
This clamp has small teeth or serrations on the blade that dig into the flange faces.
Best for: Situations where peening is difficult or not possible.
Key feature: The teeth bite into the flange to improve grip and sealing; in some cases, no peening is required.
Benefits of Using Tongue Clamps
Tongue clamps remain a valuable repair option, particularly in facilities where uptime is critical. Their main benefits include:
🔧 1. Online Repair Capability
They allow leaks to be sealed while the system remains pressurized, minimizing downtime and production losses.
💰 2. Cost-Effective Maintenance
Avoiding shutdowns can save thousands of dollars in lost production time and labor costs associated with disassembly.
⚙️ 3. Reliable Sealing
The combination of mechanical closure and injected sealant provides a durable, long-lasting repair even in high-pressure systems.
🧩 4. Versatility
Available in multiple designs, tongue clamps can be adapted for different flange sizes, orientations, and access conditions.
👷 5. Field Proven
Although their use has declined somewhat in favor of newer clamp styles, tongue clamps have been successfully employed for decades and remain a trusted method when applied by experienced technicians.
Challenges and Considerations
The primary drawback of tongue clamps is that they require a skilled technician for installation — particularly the peening process, which demands precision to avoid damaging the flange.
Additionally, modern alternatives (like enclosure clamps or injection rings) are sometimes preferred due to easier installation in tight areas. However, when properly installed, a tongue clamp remains one of the most reliable flange-sealing tools available.
Conclusion
Tongue clamps represent a clever and effective engineering solution to one of the most common industrial problems — flange leaks. Their simplicity, mechanical strength, and ability to perform under live conditions make them invaluable for maintenance teams seeking efficient, safe, and cost-effective repairs.
While newer technologies have entered the field, the fundamental design and operation of the tongue clamp remain a testament to smart engineering that stands the test of time.
