Overview

Small is the brand-new big

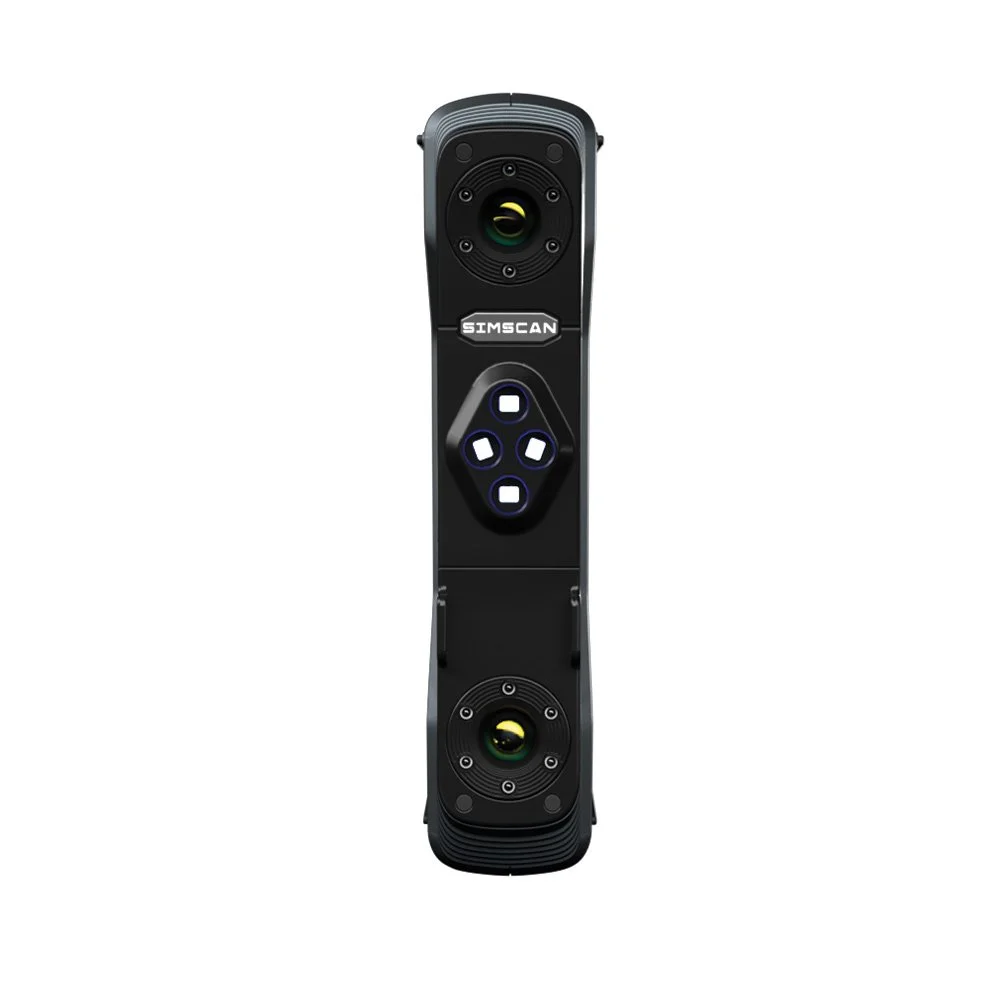

SIMSCAN is a compact and reliable handheld 3D scanner that excels in scanning hard-to-reach areas. Its robust design and small size make it a disruptive innovation in the professional 3D scanning industry. SIMSCAN's exceptional performance has earned it prestigious awards, including the German Red Dot Award and China Design Silver Award. With its ability to deliver high-quality scans in any working environment, SIMSCAN is perfect for scanning narrow spaces and large-scale parts. This metrology-grade instrument allows users to capture intricate details and create 3D models quickly and accurately.

Features & Benefits

Compact & Reliable

Single-handed Control

SIMSCAN is a durable, lightweight, and compact portable 3D scanner with a hollow structure for efficient heat dissipation. It offers simplified, one-handed scanning and low power consumption for efficient measurements. It meets a wide range of 3D measurement needs.
Narrow-space Measuring Booster

SIMSCAN, with its 130mm camera distance, offers a steeper view angle for 3D scanning narrow spaces. This enables accurate data capture in hard-to-reach areas like deep grooves, ensuring full-field data acquisition compared to competitors.
Detail, Everywhere

With its built-in HD cameras and three scanning modes, it realizes high-precision scanning with an accuracy up to 0.020 mm. It can accurately capture the 3D data of objects with complex surfaces or in confined areas.
Remarkable Portability

SIMSCAN portable 3D scanner is compact and portable, enabling 3D measurements in narrow spaces and under large objects. With AirGO Power wireless communication link, it offers mobile 3D scanning and data viewing for flexible measurements. Multifunctional buttons allow mode switching and single-handed operation, while an ergonomic design ensures comfort. The anti-slip housing and strap ensure safe scanning in all directions.
Smooth 3D Experience

SIMSCAN can 3D scan objects with a rate up to 2.8 million measurement/s thanks to its sophisticated algorithm. It is designed to offer users a smooth and efficient 3D digitizing experience.
Automated 3D Measurement

Pairing it with Scantech's 3D measurement system enables continuous measurements, boosting manufacturing efficiency by overcoming traditional limitations.

Technical Specifications

SIMSCAN comes in three versions.

Description	SIMSCAN 42	SIMSCAN 30	SIMSCAN 22
Ultra-fast scanning	17 blue laser crosses	11 blue laser crosses	7 blue laser crosses
Hyperfine scanning	7 blue parallel laser lines	7 blue parallel laser lines	7 blue parallel laser lines
Deep hole scanning	1 extra blue laser line	1 extra blue laser line	1 extra blue laser line
Accuracy (1)	Up to 0.020 mm	Up to 0.020 mm	Up to 0.020 mm
Scanning rate up to	2,800,000 measurements/s	2,020,000 measurements/s	1,250,000 measurements/s
Scanning area up to	700 mm × 600 mm	650 mm × 550 mm	650 mm × 550 mm
Laser class	CLASSⅡ (eye-safe)	CLASSⅡ (eye-safe)	CLASSⅡ (eye-safe)
Resolution up to	0.020 mm	0.020 mm	0.020 mm
Standard volume accuracy (2)	0.015 mm + 0.035 mm/m	0.015 mm + 0.035 mm/m	0.015 mm + 0.035 mm/m
Volume accuracy when paired with MSCAN-L15 (2)	0.015 mm + 0.012 mm/m	0.015 mm + 0.012 mm/m	0.015 mm + 0.012 mm/m
Stand-off distance	300 mm	300 mm	300 mm
Depth of field	550 mm	550 mm	550 mm
Output formats	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.	.stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk and etc.
Operating temperature range	-10℃–40℃	-10℃–40℃	-10℃–40℃
Interface mode	USB 3.0	USB 3.0	USB 3.0
Dimensions	203 mm × 80 mm × 44 mm	203 mm × 80 mm × 44 mm	203 mm × 80 mm × 44 mm
Weight	570 g	570 g	570 g

(1) ISO 17025 accredited: Based on VDI/VDE 2634 Part 3 standard and JJF 1951 specification, probing error (size) (PS) performance is evaluated.
(2) ISO 17025 accredited: Based on VDI/VDE 2634 Part3 standard and JJF 1951 specification, sphere spacing error (SD) performance is evaluated.
