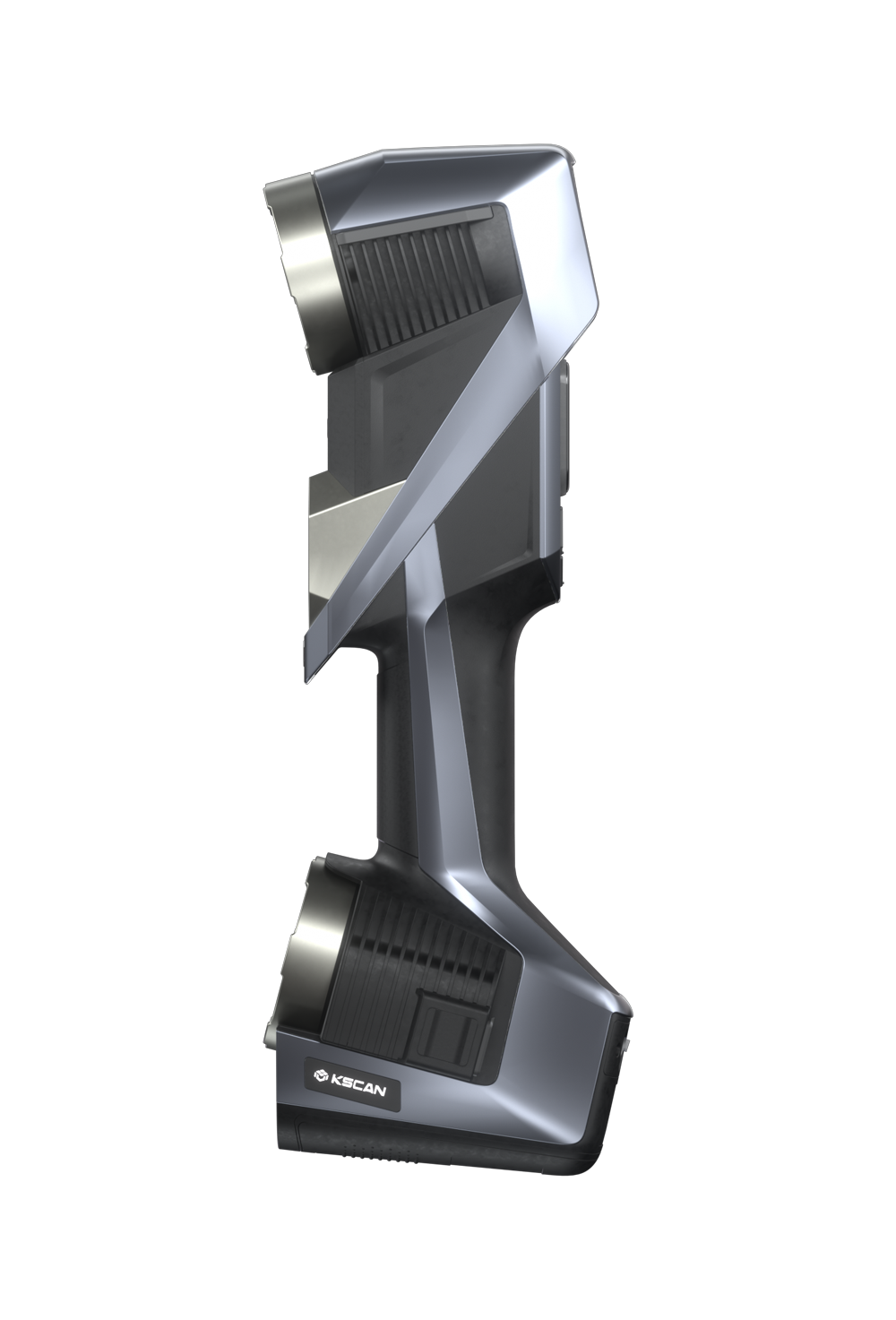

Scanology KSCAN-E 3D Scanner
Wireless, Intelligent 3D Scanning for Industrial Precision

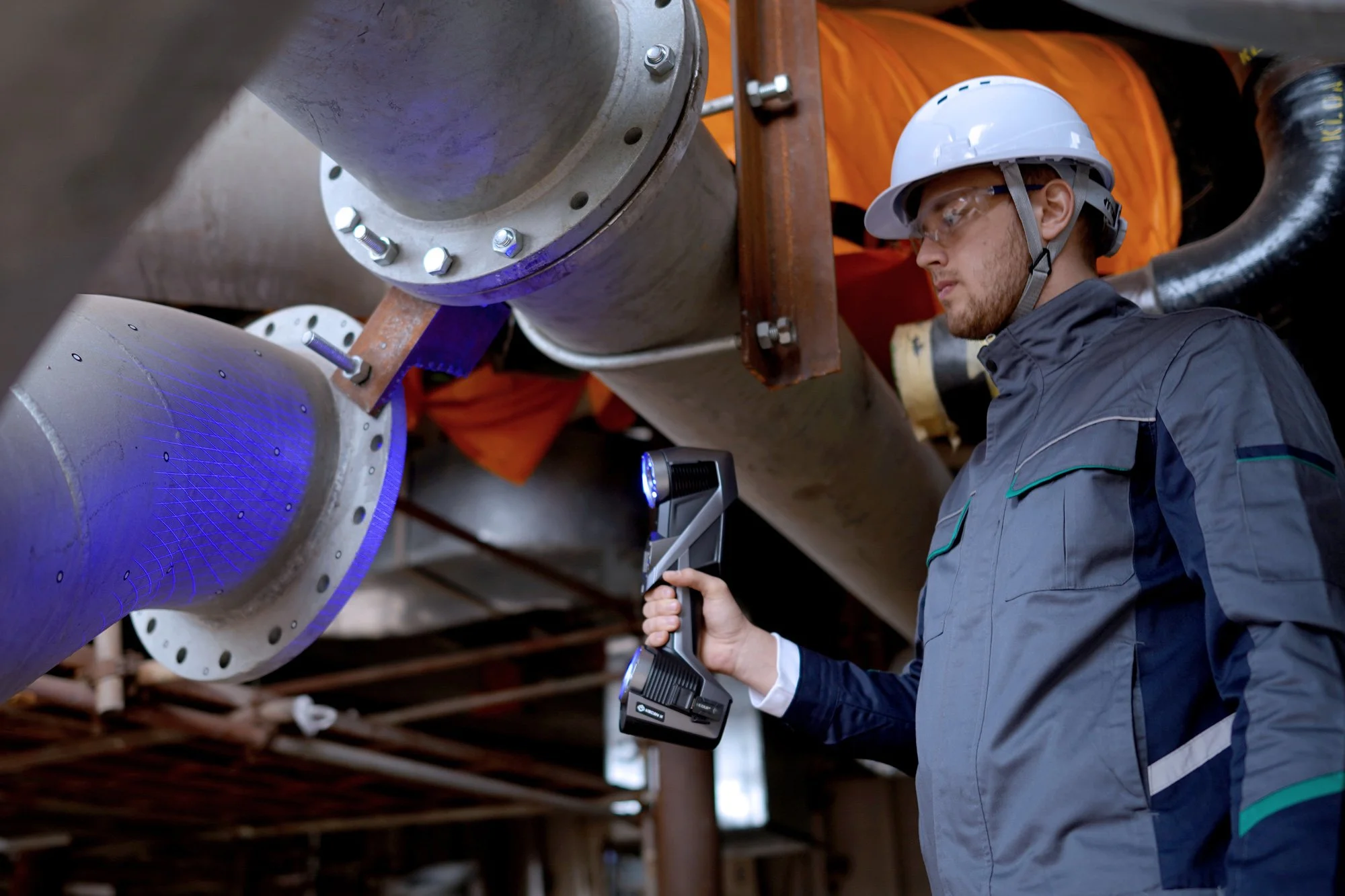

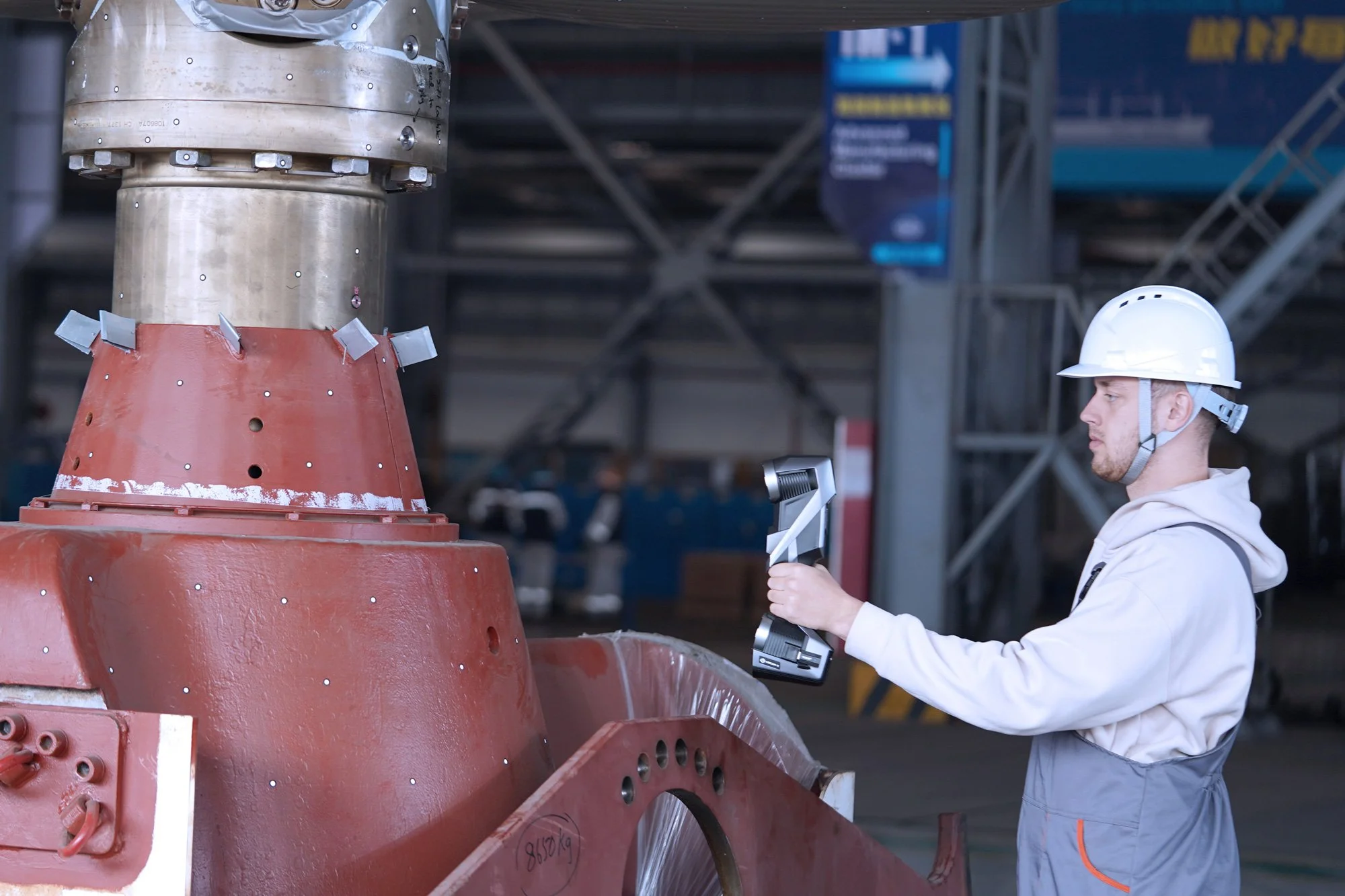

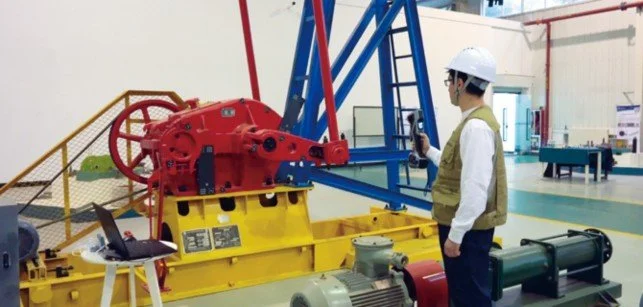

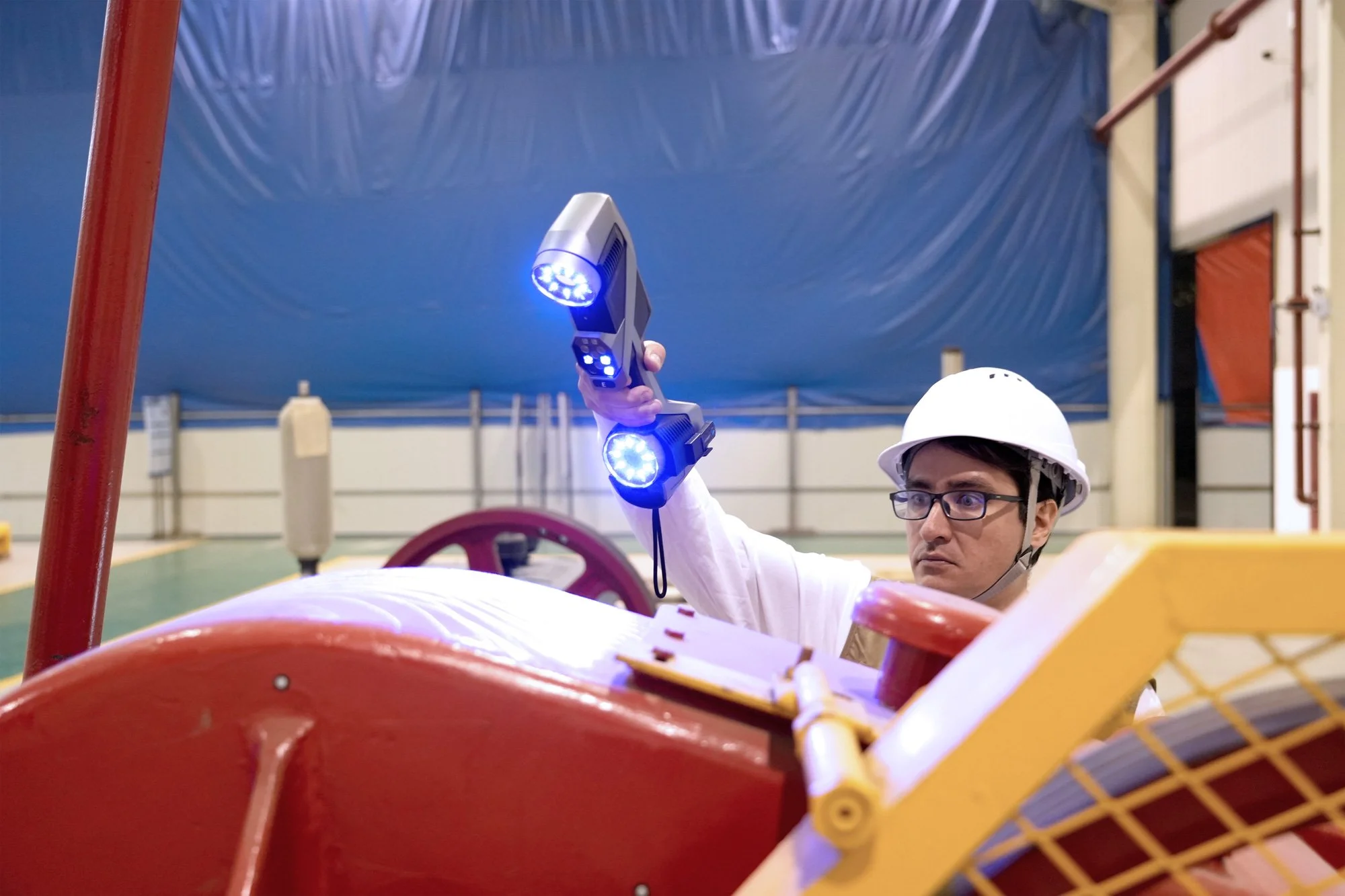

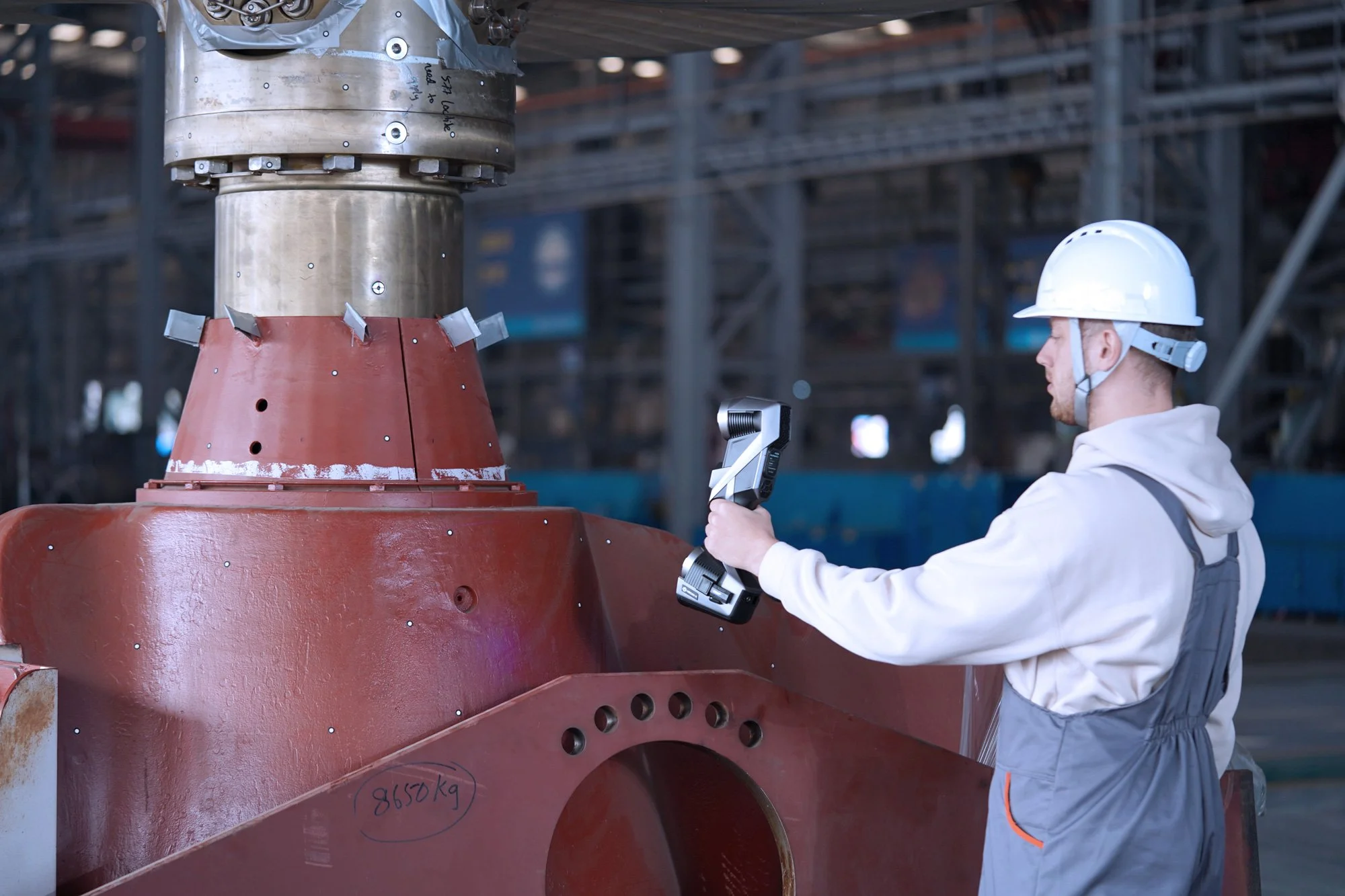

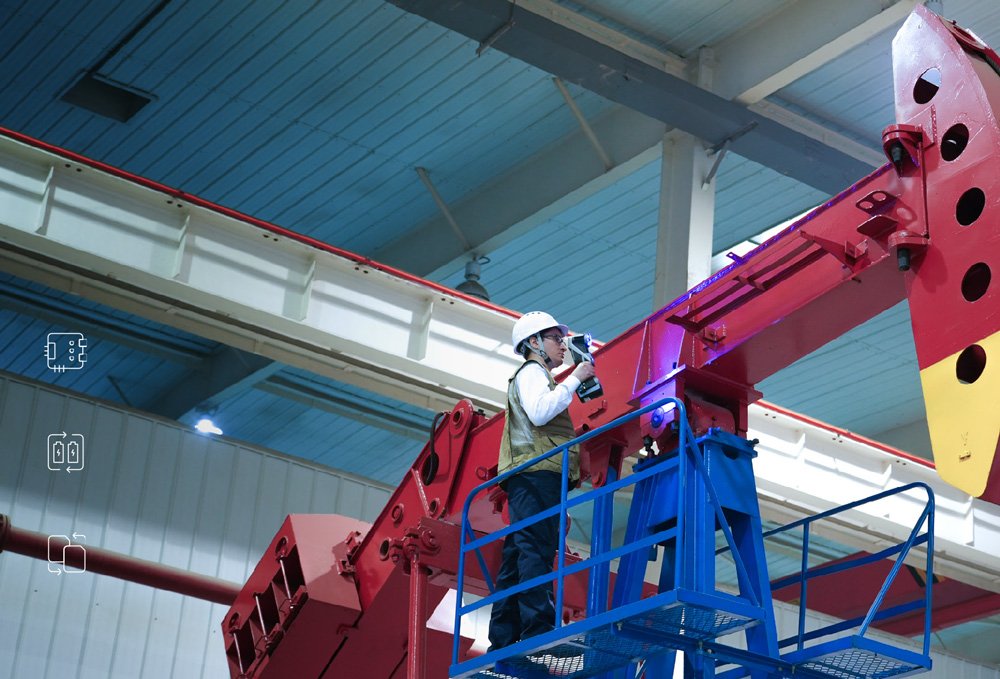

The KSCAN-E is Scanology’s most powerful 3D scanner yet, combining six scan modes, wireless operation, and precision down to 0.020 mm. From aerospace and automotive to energy and heavy industry, this all-in-one system delivers unmatched flexibility, whether you're scanning fine details or large-scale parts.
Features & Benefits
-
![]()
Ultra-Fast, High-Volume Scanning
With 4×27 quad-cross blue lasers, a scanning rate of 8.29 million measurements per second, and a frame rate of 180 FPS, the KSCAN-E delivers fast, smooth, and high-accuracy scans—even in challenging environments.
-
![]()
Hyperfine Detail Capture
Seventeen parallel blue laser lines paired with high-performance industrial cameras offer resolution up to 0.010 mm, making it ideal for scanning fine features like injection molds, gear teeth, and complex edges.
-
![]()
Adaptive Photogrammetry

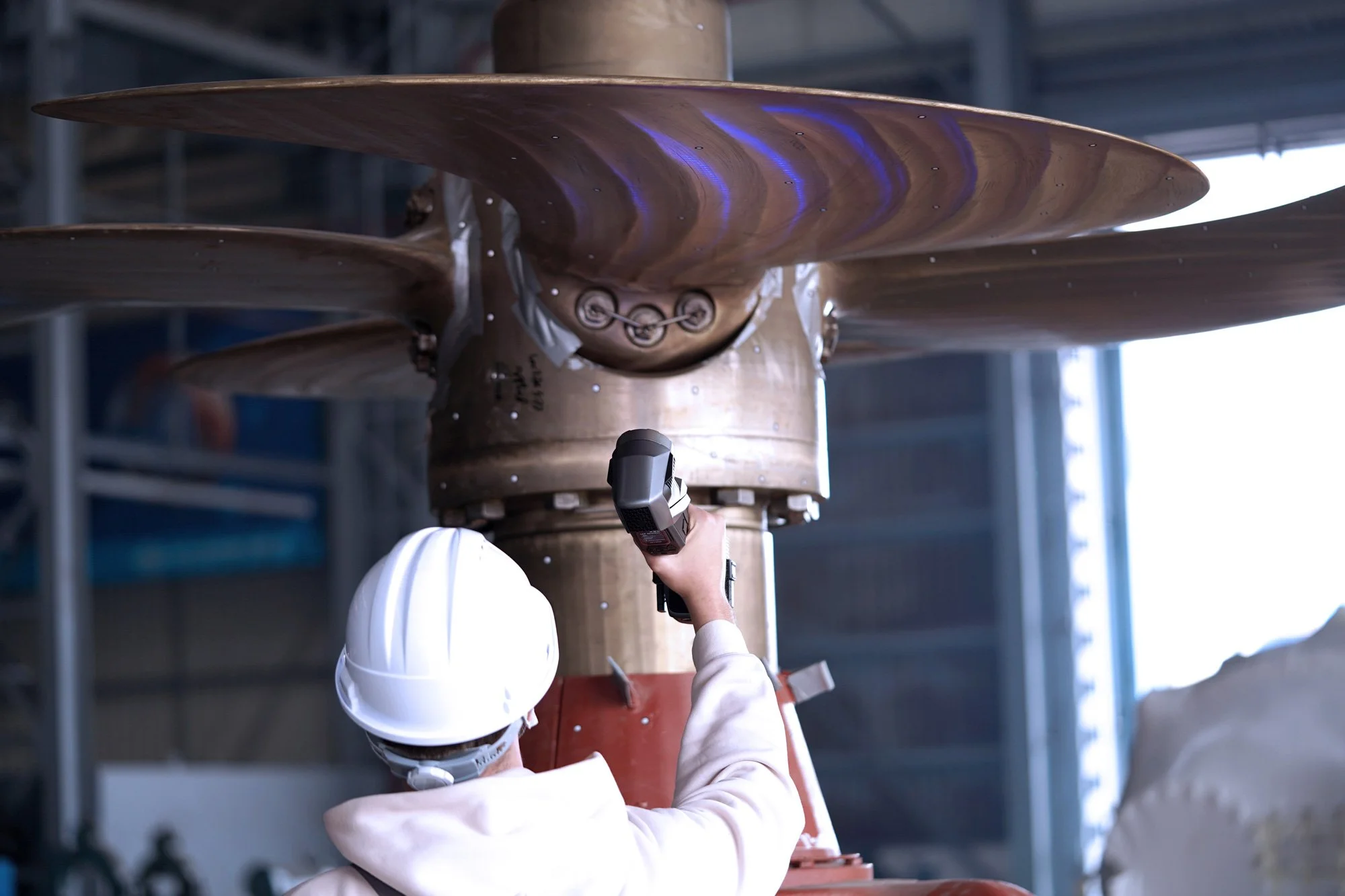

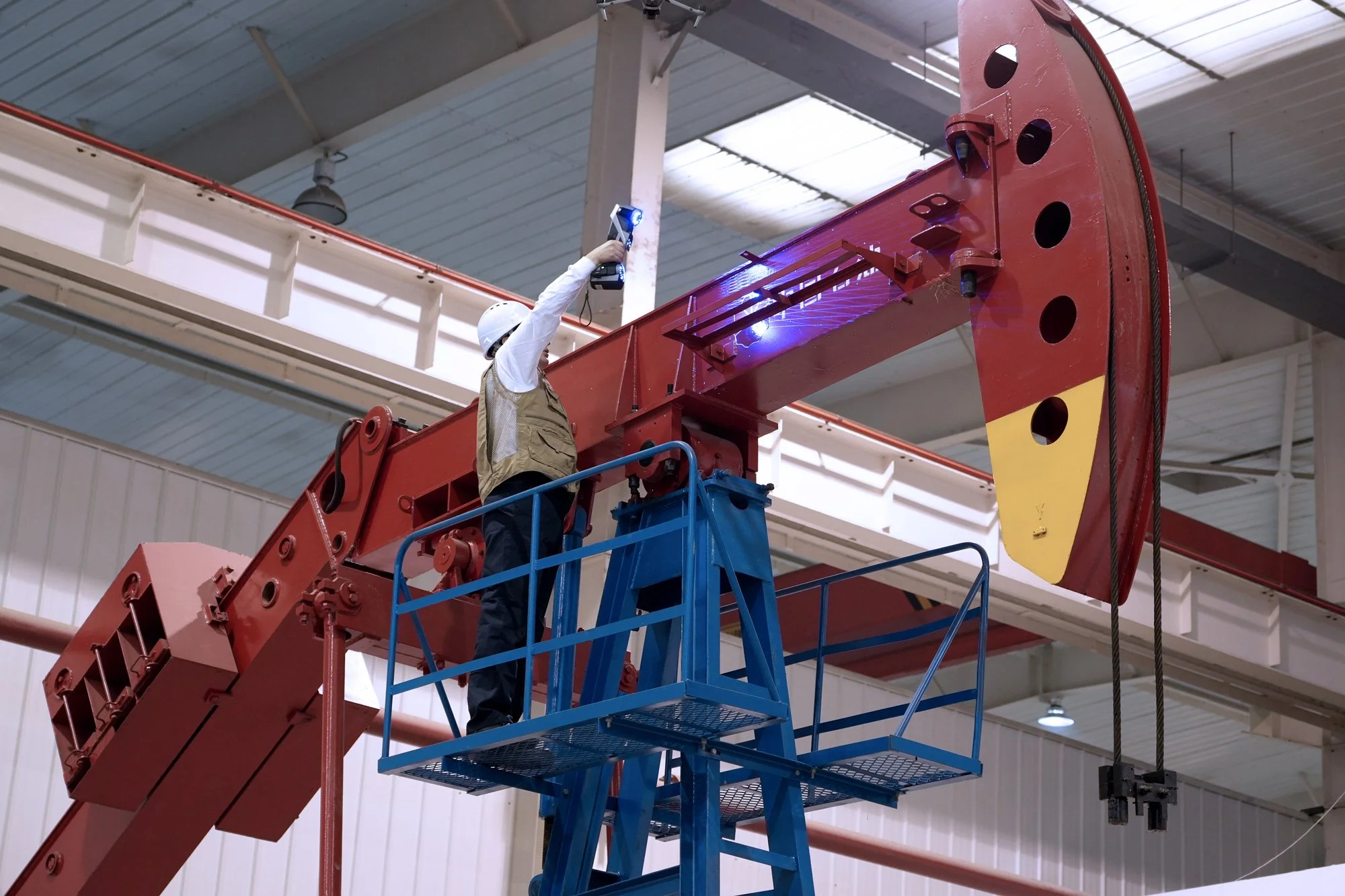

An advanced photogrammetry system eliminates cumulative errors across long distances, maintaining volumetric accuracy up to 0.015 mm + 0.012 mm/m. Perfect for scanning large parts like car bodies or heavy machinery.
-
![]()
Hole & Edge Inspection
Utilizes both grayscale recognition and laser scanning to accurately capture difficult geometries like slot edges, stamping part borders, and irregular curves—ensuring no critical surface goes undetected.
-
![]()
Truly Wireless & Built for Portability

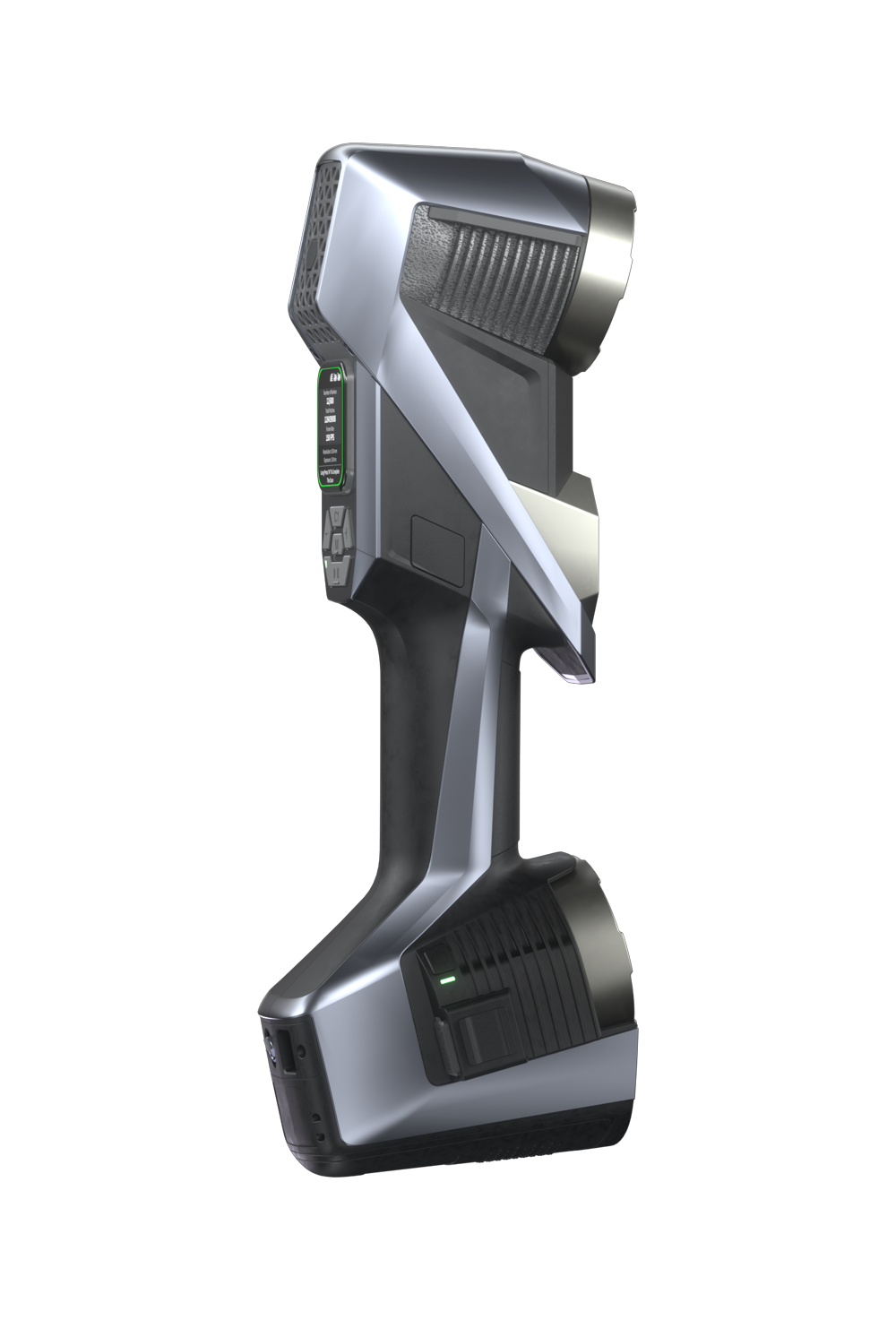

Dual batteries, built-in computing, and Wi-Fi 6 connectivity offer seamless wireless operation. The lightweight, ergonomic design and protective carry case make it ideal for use in the lab, on the shop floor, or in the field.
-
![]()
Touchscreen + Smart Controls

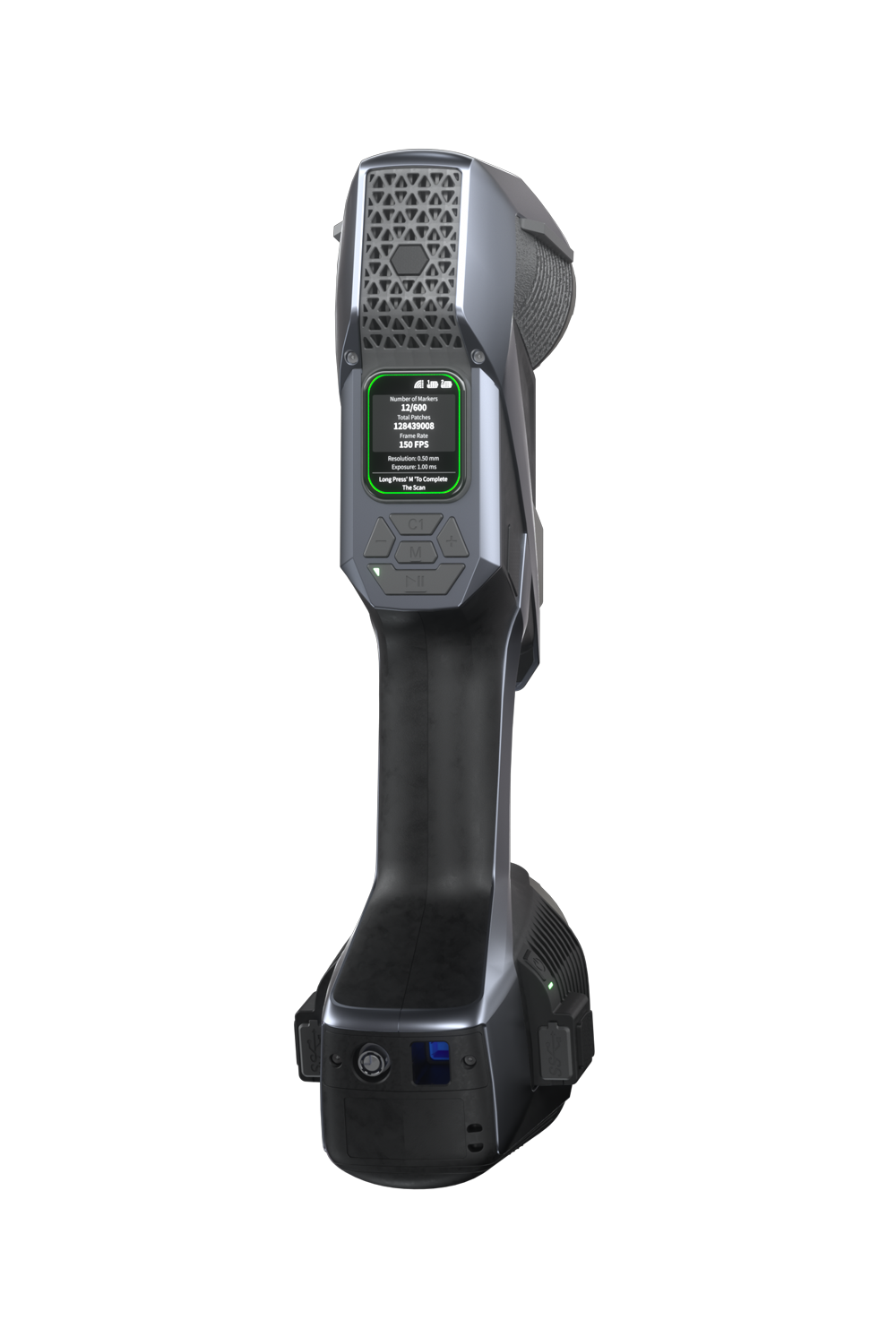

The high-resolution built-in touchscreen displays live system status and scanning prompts, while smart button controls allow for one-click scanning without a computer.
-
![]()
DefinSight Software
An all-in-one metrology platform for real-time mesh generation, scan monitoring, and high-resolution data capture—designed for both beginners and professionals.
Technical Specifications
| Specification | KSCAN-E |
|---|---|
| Scan Modes | 6: Ultra-fast, Hyperfine, Large-area, Deep-hole, Hole & Edge, Photogrammetry |
| Accuracy | Up to 0.020 mm |
| Volumetric Accuracy | Up to 0.015 mm + 0.012 mm/m (with MSCAN-L15) |
| Resolution | Up to 0.010 mm |
| Scanning Rate | 8.29 million measurements/s |
| Frame Rate | 180 FPS |
| Scanning Area | Up to 1440 mm × 1000 mm |
| Object Size Range | 0.05 m – 8 m |
| Working Distance | 150 mm – 1500 mm (depending on mode) |
| Connection | USB 3.0 + Wi-Fi 6 (Dual WNIC) |
| Power | Dual Battery, Uninterrupted Power Supply |
| Dimensions | 344 × 124 × 99 mm |
| Laser Class | Class II (eye-safe) |
| Operating Temp | -10°C to 40°C |
| Humidity Range | 10% to 90% RH |
| Protection Rating | IP50 |
| Software | DefinSight |
(1) ISO 17025 accredited: Performance is evaluated based on JJF1951 specification, VDI/VDE 2634 Part 3 and ISO 10360-13 standard.
(2) Paired with 800-mm high-precision scale bar.
*Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.
Massive Functions, Minimal Setup
Enjoy faster scanning, fewer targets, and real-time data capture—without the wires or the learning curve. Whether you're inspecting complex components or scanning on-site, the KSCAN-E makes it easy to work smarter, not harder.
