Artec Micro 3D Scanner
Professional ultra-high-precision industrial desktop 3D scanner
Artec Micro is a user-friendly desktop 3D scanner that provides high-quality scans for a range of applications. It is perfect for reverse engineering, quality control, inspection, dentistry, jewelry, design, and more. With a point accuracy of up to 10 microns, Artec Micro ensures precise scanning results. Its automated features make it easy to use, bringing the ultimate scanning solution to your desktop.
Features & Benefits
User-friendly Desktop 3D Scanner for Precise Scanning
-
![]()
The cutting edge of desktop 3D scanning

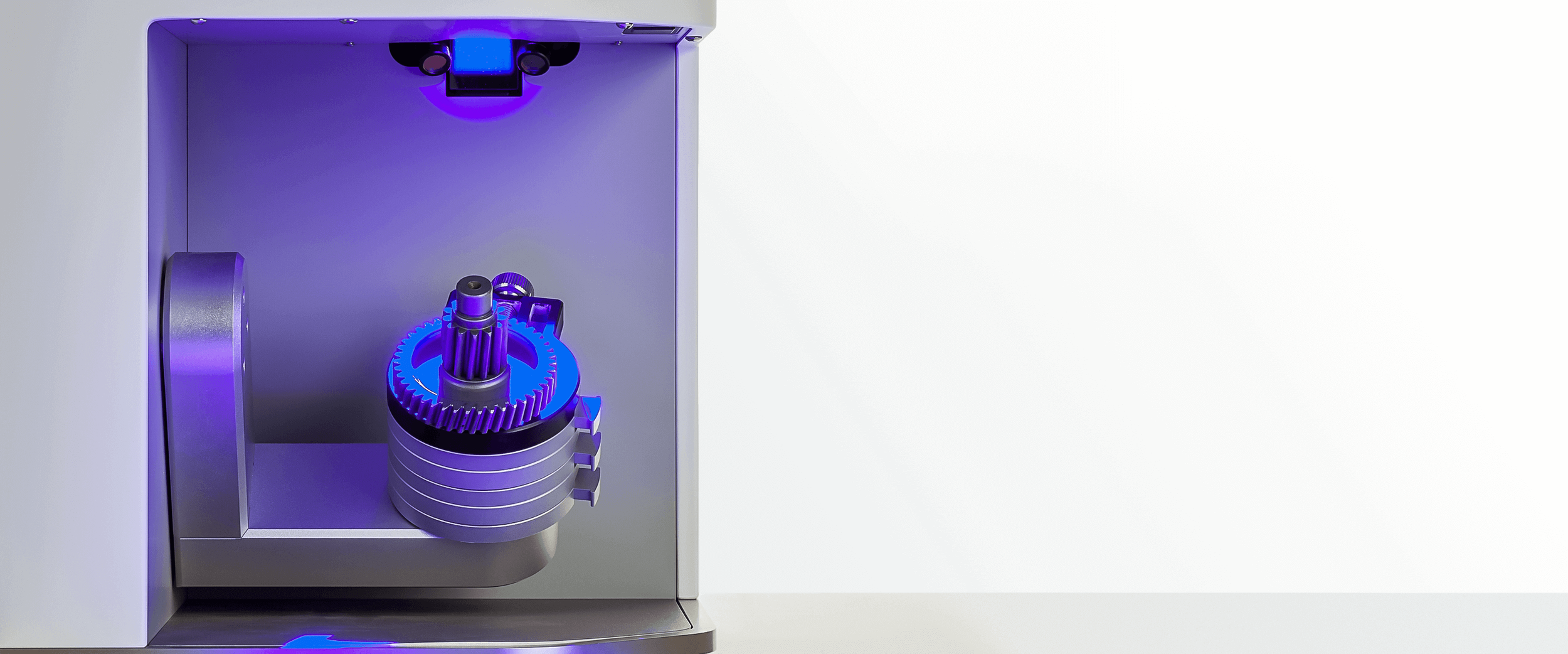

Artec Micro brings the latest in scanning technology to your desktop. Its advanced twin color cameras and blue LED lights are perfectly synchronized with Micro’s dual-axis rotation system (swing & rotation) to create the ultimate digital copy of your object with a minimum of frames captured.
-
![]()
User-friendly 3D scanning
Compact and easy to use. Just place the object on the circular scanning platform, and you can start scanning right away. There are different scanning paths to choose from. You can see the scan in incredible detail on the screen as it happens. Micro requires minimal training. After a brief introduction, you'll be able to scan small objects independently.
-
![]()
Powerful, robust software

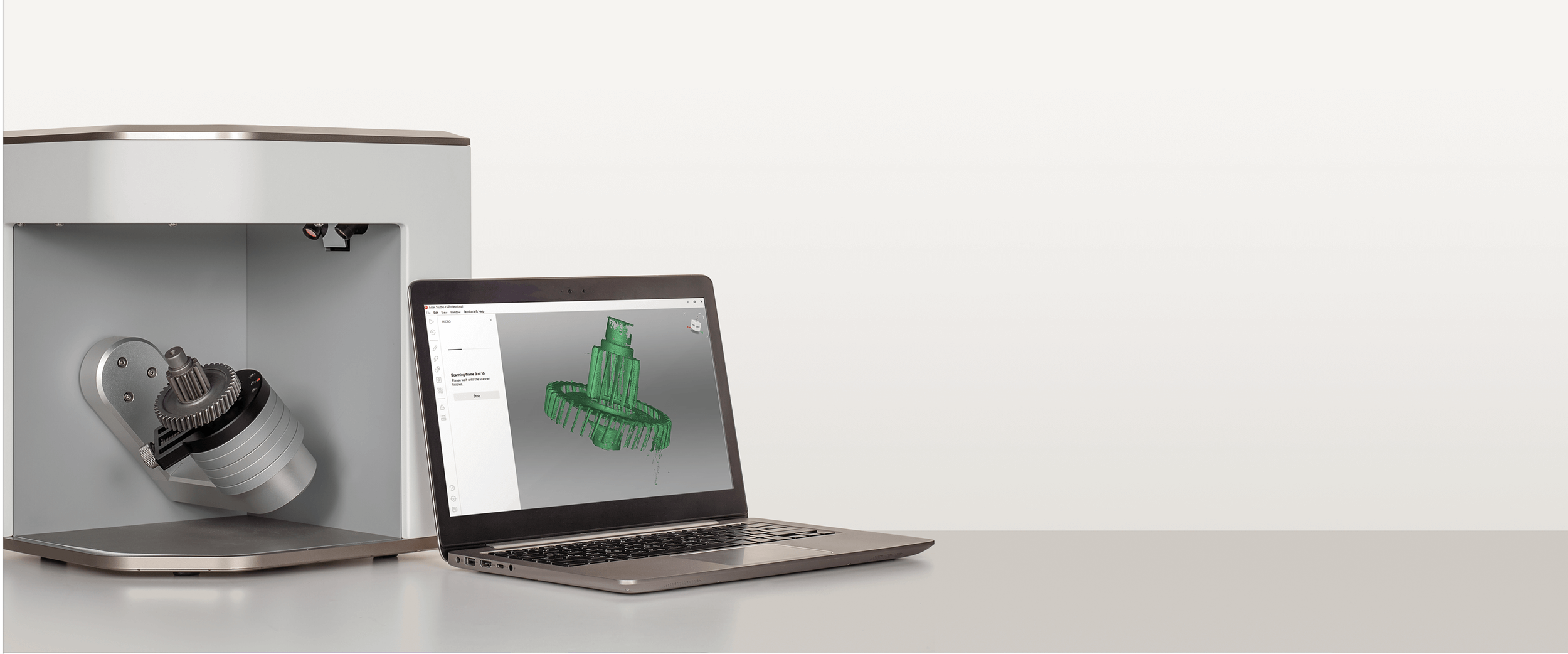

Micro seamlessly connects with Artec Studio, a widely-praised software, enabling instant digital capture. Witness your scans come to life on the screen. Artec Studio simplifies the post-scanning process by following the same steps as our handheld scanners. Once finished, easily export the final 3D model to software like SOLIDWORKS, PolyWorks Inspector, Control X, or Design X.
-
![]()
Smart scanning mode
Digitize your objects automatically and quickly. Simply place the object on the scanner and let Micro do the rest. Micro's Smart scanning mode captures every surface efficiently, saving time and storage space. Your objects will be digitized in no time, leaving you with more storage on your hard disk.
Technical Specifications
| Description | Spec |
|---|---|
| 3D point accuracy, up to | 0.01 mm |
| 3D resolution, up to | 0.029 mm |
| Scanner type | Desktop |
| Ability to capture texture | Yes |
| Texture resolution | 6.4 mp |
| Colors | 24 bpp |
| Data acquisition speed, up to | 1 mln points/s |
| 3D exposure time | Customizable |
| 2D exposure time | Customizable |
| 3D light source | Blue LED |
| Interface | USB 3.0 |
| Supported OS | Windows 10 x64 |
| Recommended computer requirements | Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with at least 3 GB VRAM, CUDA 3.5+ |
| Power source | AC power |
| Dimensions, H × D × W | 290 x 290 x 340 mm |
| Weight | 12 kg / 26.7 lb |
| 3D mesh formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PTEX), E57, XYZRGB |
| CAD formats | STEP, IGES, X_T |
| Formats for measurements | CSV, DXF, XML |
The possibilities are limitless
Artec Micro is perfect for reverse engineering, quality control, inspection, dentistry, jewelry, design, and any other area where you need to capture small objects with ultra-high accuracy.
